ACH32C

(ACH Series) 3-teminal Filters

ACH32C Features

* These T-type EMC filters comprise ferrite beads and chip capacitors and are engineered to handle high current levels.

* The series offers even greater attenuation characteristics when used in a stable circuit on the ground.

* The ACH series is ideal for high-density circuit

ACH32C Datasheet (130.41 KB)

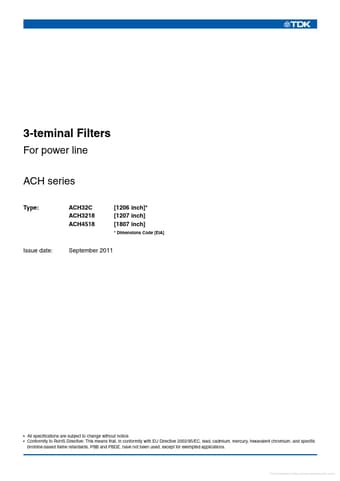

Preview of ACH32C PDF

Datasheet Details

Part number:

ACH32C

Manufacturer:

TDK

File Size:

130.41 KB

Description:

(ach series) 3-teminal filters.
3-teminal Filters For power line ACH series Type: ACH32C ACH3218 ACH4518 [1206 inch]
* [1207 inch] [1807 inch]
* Dimensions Code [EIA] Issue d.
