Name: ATB2012E-50011M
SKU: ATB2012E-50011M-786183

TDK

The ATB2012E-50011M by TDK is a ATB Series Balun Transformers. Below is the official datasheet preview.

Datasheet Details

Part number	ATB2012E-50011M, ATB2012-50011
Manufacturer	TDK
File Size	178.35 KB
Description	ATB Series Balun Transformers
Datasheet	ATB2012-50011-TDK.pdf
Note	This datasheet PDF includes multiple part numbers: ATB2012E-50011M, ATB2012-50011. Please refer to the document for exact specifications by model.

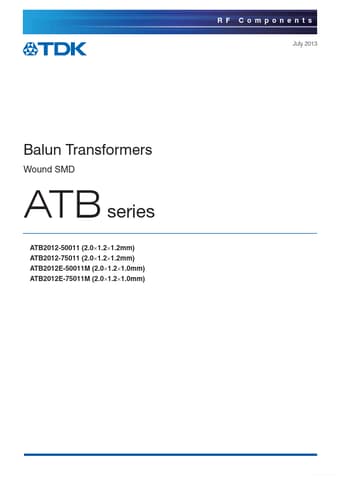

Additional preview pages of the ATB2012E-50011M datasheet.

Chip balun transformer developed for impedance systems; ATB2012-50011 and ATB2012E-50011M are for 50: impedance and ATB2012-75011 and ATB2012E-75011M are for 75: impedance. Input impedance is 50: for ATB2012-50011 and ATB2012E-50011M, and 75: for ATB2012-75011 and ATB2012E-75011M. The impedance ratio is 1:1. The frequency band width for ATB2012-50011 is 40MHz to 860MHz (Standard IL = 1.0dB), for ATB2012E-50011M is 400MHz to 1.8GHz (Standard IL =1.0dB), for ATB2012-75011is 50MHz to 1.2GHz (Standa.
