AVR-M0603C120M, AVRM0603C6R8N Datasheet - TDK

AVR-M0603C120M Varistors

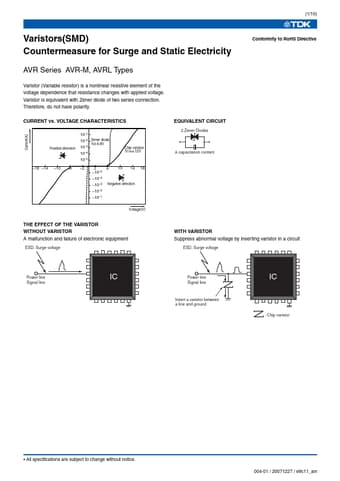

(1/10) Varistors(SMD) Countermeasure for Surge and Static Electricity Conformity to RoHS Directive AVR Series AVR-M, AVRL Types Varistor (Variable resistor) is a nonlinear resistive element of the voltage dependence that resistance changes with applied voltage. Varistor is equivalent with Zener diode of two series connection. Therefore, do not have polarity. CURRENT vs. VOLTAGE CHARACTERISTICS Current(A) Positive direction 10 1 10 2 10 3 Zener diode /Vz:6.8V 10<.

AVR-M0603C120M Features

* No polarity, due to symmetrical current-voltage characteristics. Equivalent to anode common type Zener diode.

* Excellent electrostatic absorption capability. Response is as good or better than Zener diode. Keeps symmetrical current-voltage characteristics even after electrostatic

AVRM0603C6R8N-TDK.pdf

This datasheet PDF includes multiple part numbers: AVR-M0603C120M, AVRM0603C6R8N. Please refer to the document for exact specifications by model.
AVR-M0603C120M Datasheet Preview Page 2 AVR-M0603C120M Datasheet Preview Page 3

Datasheet Details

Part number:

AVR-M0603C120M, AVRM0603C6R8N

Manufacturer:

TDK

File Size:

215.45 KB

Description:

Varistors.

Note:

This datasheet PDF includes multiple part numbers: AVR-M0603C120M, AVRM0603C6R8N.
Please refer to the document for exact specifications by model.
