AVRM0603C6R8N Varistors

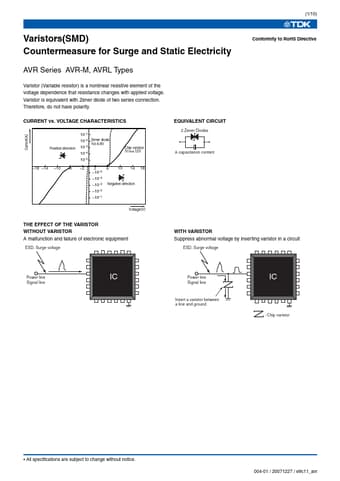

(1/10) Varistors(SMD) Countermeasure for Surge and Static Electricity Conformity to RoHS Directive AVR Series AVR-M, AVRL Types Varistor (Variable resistor) is a nonlinear resistive element of the voltage dependence that resistance changes with applied voltage. Varistor is equivalent with Zener diode of two series connection. Therefore, do not have polarity. CURRENT vs. VOLTAGE CHARACTERISTICS Current(A) Positive direction 10 1 10 2 10 3 Zener diode /Vz:6.8V 10<.

AVRM0603C6R8N Features

* No polarity, due to symmetrical current-voltage characteristics. Equivalent to anode common type Zener diode.

* Excellent electrostatic absorption capability. Response is as good or better than Zener diode. Keeps symmetrical current-voltage characteristics even after electrostatic
