* Miniaturized dimensions
* Long useful life, 4000 h up to 125 °C
* Very compact design
* Very high ripple current capability
* Very low ESR
* Low ESR across temperature range
* Suitable for reflow soldering
* RoHS-compatible Construction
* Surface mount device
B40921
TDK
858.39 KB

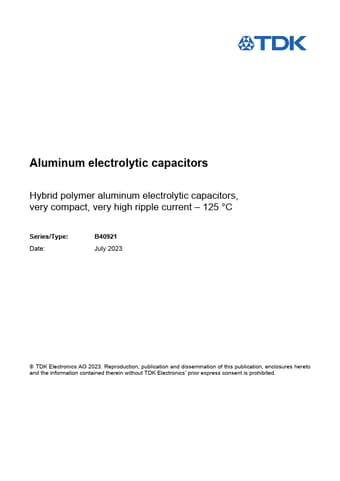

Aluminum electrolytic capacitor.
Aluminum electrolytic capacitors
Hybrid polymer aluminum electrolytic capacitors, very compact, very high ripple current
* 125 °C
Series/Typ.
