B59774C0115A070, B59770C0120A070 PTC thermistors

B59774C0115A070 Description

PTC thermistors for overcurrent protection and as inrush current limiters Leaded disks, 260 V up to 1000 V Series/Type: Date: B597 * *C0 / B59.

B59774C0115A070 Features

* Lead-free terminals Self-protecting in case of malfunction of short-circuit relay or internal short circuit of capacitor Inrush current limiters are not damaged when directly connected to Vmax even without additional current limitation Marking: Type, manufacturer's logo, reference temperature in °C

B59774C0115A070 Applications

* Inrush current limiter for smoothing and DC link capacitors To replace high-power fixed resistors for capacitor charging Overcurrent and short circuit protection Dimensional drawing with coating, C14
* and C7

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: B59774C0115A070, B59770C0120A070. Please refer to the document for exact specifications by model.

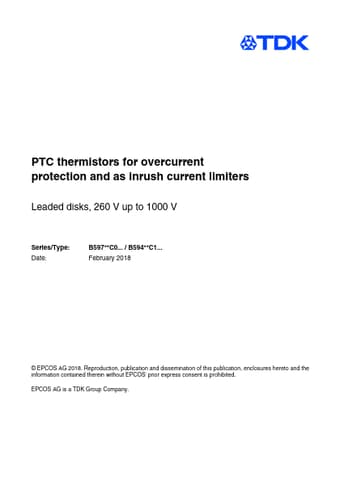

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B59774C0115A070, B59770C0120A070
Manufacturer
TDK
File Size
703.09 KB
Datasheet
B59770C0120A070-TDK.pdf
Description
PTC thermistors
Note
This datasheet PDF includes multiple part numbers: B59774C0115A070, B59770C0120A070.
Please refer to the document for exact specifications by model.
