B82453C0300A000 3D transponder coils

TDK

B82453C0300A000 Description

Inductors 3D transponder coils Size 11.5 u 12.5 u 3.6 (mm) Series/Type: B82453C *A aDat~e:í~=pÜÉÉí June 2017 ¤EPCOS AG 2017.Reproduction, pu.

B82453C0300A000 Features

* Long receiving distance at 125 kHz
* Qualified to AEC-Q200
* High sensitivity in all orientations (X/Y/Z)
* Suitable for pick and place and AOI (Automatic Optical Inspection)
* Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020E
* RoHS-compatible Appli

B82453C0300A000 Applications

* Passive entry, passive start (PEPS): wake-up and immobilzer LF antenna coil Terminals
* Base material CuSn4
* Layer composition Sn (lead-free)
* Lead-free tinned Delivery mode and packing unit
* 24-mm blister tape, wound on 330-mm reel
* Packing unit: 900 pcs. /reel B8245

📥 Download Datasheet

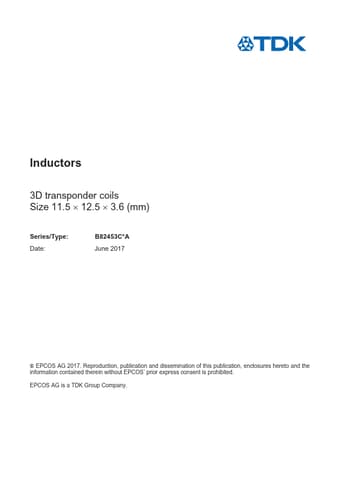

B82453C0300A000 Datasheet Preview — Preview of B82453C0300A000 PDF

Datasheet Details

Part number: B82453C0300A000
Manufacturer: TDK
File Size: 310.27 KB
Datasheet: B82453C0300A000-TDK.pdf
Description: 3D transponder coils
