CLF12555 Inductors

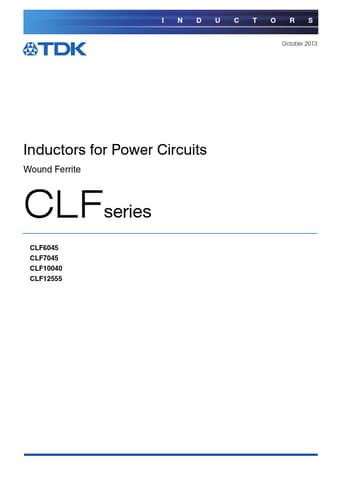

INDUCTORS October 2013 Inductors for Power Circuits Wound Ferrite CLFseries CLF6045 CLF7045 CLF10040 CLF12555 INDUCTORS REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. (2/21) REMINDERS The storage period is less than 6 months. Be sure to follow the storage conditions (Temperature: 5 to 30°C, Humidity: 10 to 75% RH or le.

CLF12555 Features

* Magnetic shield type wound inductor for power circuits. 1 to 470µH, wide E-6 Series lineup allows for various usages. APPLICATION Thin-screen TVs, LCDs, AV equipment, STBs, LED lights, industrial equipment PART NUMBER CONSTRUCTION CLF 7045 T - 1R5 Series name L×W×H Dimensions (mm) 6045 6.2×5.9
