CRX0515P, CRX0505N Datasheet - TDK

CRX0515P DC-DC Converter

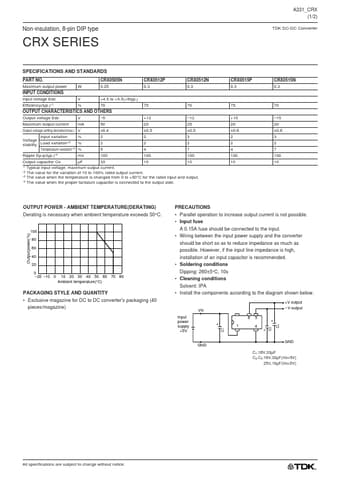

A331_CRX (1/2) Non-insulation, 8-pin DIP type TDK DC-DC Converter CRX SERIES SPECIFICATIONS AND STANDARDS PART NO. CRX0505N CRX0512P CRX0512N Maximum output power W 0.25 0.3 0.3 INPUT CONDITIONS Input voltage Edc V +4.5 to +5.5(+5typ.) Efficiency(typ.)∗1 % 70 75 70 OUTPUT CHARACTERISTICS AND OTHERS Output voltage Edc V 5 +12 12 Maximum output current mA 50 25 25 Output voltage setting deviation(max.) V ±0.4 ±0.5 ±0.5 Input variation % 2 2 3 Voltage ∗2 Load variation % 2 2 2 .

CRX0505N_TDK.pdf

CRX0515P Datasheet Preview — This datasheet PDF includes multiple part numbers: CRX0515P, CRX0505N. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CRX0515P, CRX0505N

Manufacturer:

TDK

File Size:

77.56 KB

Description:

Dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: CRX0515P, CRX0505N.
Please refer to the document for exact specifications by model.
