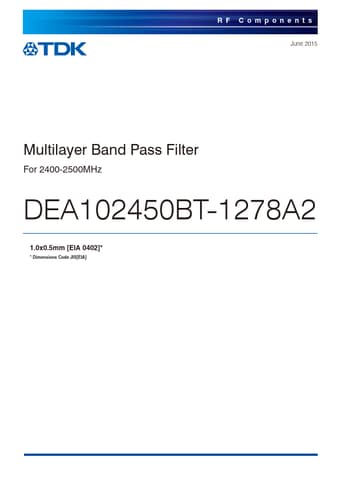

RF Components
June 2015
Multilayer Band Pass Filter
For 2400-2500MHz
DEA102450BT-1278A2
1.0x0.5mm [EIA 0402]*
* Dimensions Code JIS[EIA]
RF Components
Multilayer Band Pass Filter
For 2400-2500MHz
DEA102450BT-1278A2
SHAPES AND DIMENSIONS
[Top view]
1.00±0.05 (4)
0.40max.
(1) (3)
(2) Marking
0.50±0.05
0.30±0.15 0.12±0.10
[Bottom view] 0.12±0.10
0.30±0.15
0.35±0.15
Terminal functions 1 IN 2 GND 3 OUT 4 GND
Dimensions in mm
RECOMMENDED LAND PATTERN
0.70 0.30 0.20
0.45
Conformity to RoHS Directive
0.45 0.20 0.30
Dimensions in mm
RoHS Directive Compliant Product: See the following for more details related to RoHS Directive compliant products. http://product.tdk.com/en/environment/rohs/
• All specifications are subject to change without notice.
