DPX205850DT-4052B2 Datasheet - TDK

DPX205850DT-4052B2 - Multilayer Diplexer

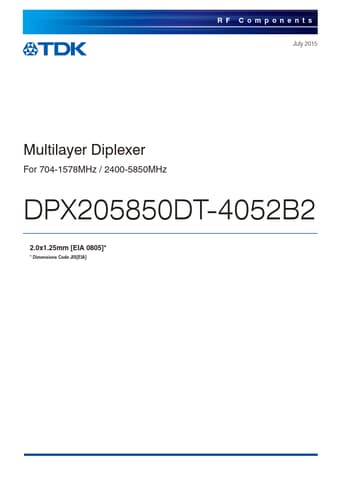

RF Components July 2015 Multilayer Diplexer For 704-1578MHz / 2400-5850MHz DPX205850DT-4052B2 2.0x1.25mm [EIA 0805] Dimensions Code JIS[EIA] RF Components Multilayer Diplexer For 704-1578MHz / 2400-5850MHz DPX205850DT-4052B2 SHAPES AND DIMENSIONS [Top view] 2.00±0.15 (6) (5) (4) 0.90±0.10 1.25±0.10 (1) (2) (3) Marking [Bottom view] 0.65±0.05 0.30±0.15 0.20±0.15 0.35±0.10 0.30±0.20 Terminal functions 1 GND 2 Common 3 GND 4 High-band 5 GND 6 Low-band Dimensions in mm Con.

DPX205850DT-4052B2-TDK.pdf

DPX205850DT-4052B2 Datasheet Preview — Preview of DPX205850DT-4052B2 PDF

DPX205850DT-4052B2 Datasheet Preview Page 2

DPX205850DT-4052B2 Datasheet Preview Page 3

Datasheet Details

Part number:

DPX205850DT-4052B2

Manufacturer:

TDK

File Size:

83.61 KB

Description:

Multilayer diplexer.
