IIM-20670 Datasheet - TDK

6-axis MotionTracking MEMS Device

IIM-20670 Features

* Six independent mechanical structures

* Gyroscope with programmable full scale range from ±41 dps to ±1966 dps

* Accelerometer with programmable full-scale range from ±2g, to ±65g

* Two temperature sensors

* 10 MHz Serial Peripheral Interface (SPI)

IIM-20670 General Description

The IIM-20670 is a SmartIndustrial™ 6-axis MotionTracking device that combines a 3-axis gyroscope and a 3-axis accelerometer in a small plastic package. By leveraging its patented and volume-proven CMOS-MEMS fabrication platform, InvenSense has driven the package size down to a footprint and thickn.

IIM-20670 Datasheet (1.54 MB)

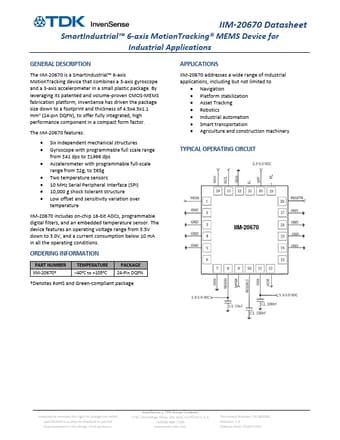

Preview of IIM-20670 PDF

Datasheet Details

Part number:

IIM-20670

Manufacturer:

TDK

File Size:

1.54 MB

Description:

6-axis motiontracking mems device.
