MLG0603Q3N6, MLG0603Q0N3 Datasheet - TDK

MLG0603Q3N6, MLG0603Q0N3, SMD Inductors

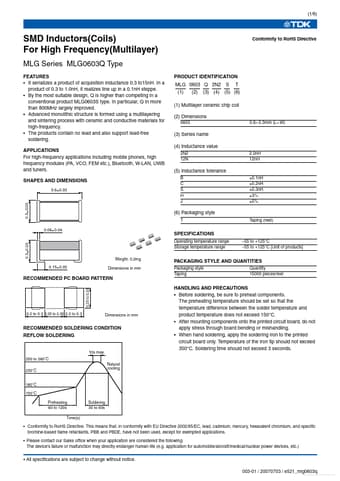

(1/6) SMD Inductors(Coils) For High Frequency(Multilayer) MLG Series MLG0603Q Type .

MLG0603Q0N3_TDK.pdf

MLG0603Q3N6 Datasheet Preview — This datasheet PDF includes multiple part numbers: MLG0603Q3N6, MLG0603Q0N3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MLG0603Q3N6, MLG0603Q0N3

Manufacturer:

TDK

File Size:

95.36 KB

Description:

SMD Inductors

Note:

This datasheet PDF includes multiple part numbers: MLG0603Q3N6, MLG0603Q0N3.
Please refer to the document for exact specifications by model.

Features

* It serializes a product of acquisition inductance 0.3 to15nH. In a product of 0.3 to 1.0nH, it realizes line up in a 0.1nH steppe.
* By the most suitable design, Q is higher than competing in a conventional product MLG0603S type. In particular, Q in more than 800MHz largely improve

Applications

* For high-frequency applications including mobile phones, high frequency modules (PA, VCO, FEM etc. ), Bluetooth, W-LAN, UWB and tuners. SHAPES AND DIMENSIONS 0.6±0.03 Conformity to RoHS Directive PRODUCT IDENTIFICATION MLG 0603 Q 2N2 S T (1) (2) (3) (4) (5) (6) (1) Multilayer ceramic chip coil (2)
