GA30K5A1D THERMISTORS

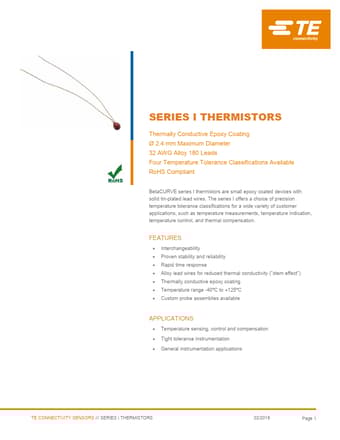

SERIES I THERMISTORS Thermally Conductive Epoxy Coating Ø 2.4 mm Maximum Diameter 32 AWG Alloy 180 Leads Four Temperature Tolerance Classifications Available RoHS Compliant BetaCURVE series I thermistors are small epoxy coated devices with solid tin-plated lead wires. The series I offers a choice of precision temperature tolerance classifications for a wide variety of customer applications, such as temperature measurements, temperature indication, temperature control, and thermal compensation. F.

GA30K5A1D Features

* Interchangeability

* Proven stability and reliability

* Rapid time response

* Alloy lead wires for reduced thermal conductivity ("stem effect")

* Thermally conductive epoxy coating

* Temperature range -40ºC to +125ºC

* Custom probe assemblies available APPLICATIONS

GA3K3A1A-TE.pdf

GA30K5A1D Datasheet Preview — This datasheet PDF includes multiple part numbers: GA30K5A1D, GA3K3A1A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GA30K5A1D, GA3K3A1A

Manufacturer:

File Size:

110.75 KB

Description:

Thermistors.

Note:

This datasheet PDF includes multiple part numbers: GA30K5A1D, GA3K3A1A.
Please refer to the document for exact specifications by model.
