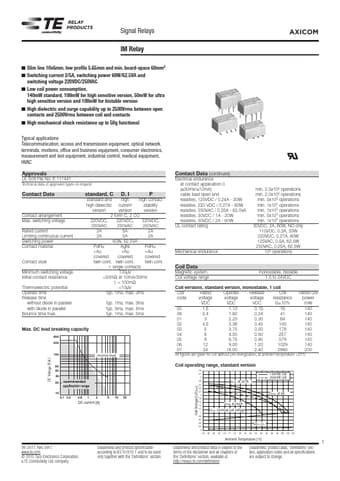

Signal Relays IM Relay
AXICOM
n Slim line 10x6mm, low profile 5.65mm and min. board-space 60mm2 n Switching current 2/5A, switching power 60W/62.5VA and
switching voltage 220VDC/250VAC n Low coil power consumption,
140mW standard, 100mW for high sensitive version, 50mW for ultra high sensitive version and 100mW for bistable version n High dielectric and surge capability up to 2500Vrms between open contacts and 2500Vrms between coil and contacts n High mechanical shock resistance up to 50g functional
Typical applications
Telecommunication, access and transmission equipment, optical network
terminals, modems, office and business equipment, consumer electronics,
measurement and test equipment, induAsXtIrCiOaMl cÊSoingntraolÊlR,emlayesdical equipment,
HVAC
IM Relay
108-98001 Rev.
IM21GR Datasheet
