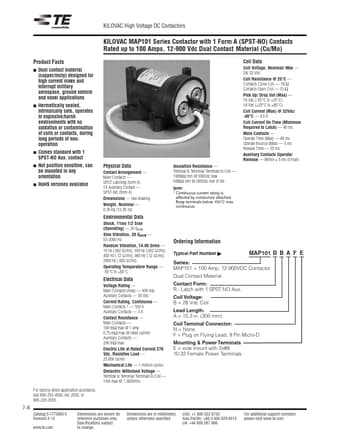

KILOVAC High Voltage DC Contactors KILOVAC MAP101 Series Contactor with 1 Form A (SPST-NO) Contacts Rated up to 100 Amps, 12-900 Vdc Dual Contact Material (Cu/Mo) Product Facts n Coil Data Coil Voltage, Nominal/ Max — 28/ 32 Vdc Coil Resistance @ 25°C — Contacts Close Coil — 18 Ω Contacts Open Coil — 13 Ω Pick Up/ Drop Out (Max) — 16 Vdc (-55°C to +25°C) 18 Vdc (+25°C to +85°C) Coil Current (Max) @ 32Vdc/ -40°C — 4.
