MS4525 Datasheet - TE

MS4525 pressure transducer

MS4525 SPECIFICATIONS PCB Mounted Pressure Transducers Amplified Ratiometric Analog Output Differential, Gage, Absolute, Compound, & Vacuum Temperature Compensated 3.3 or 5.0 Vdc Supply Voltage The MS4525 is a small, ceramic based, PCB mounted pressure transducer from Measurement Specialties. The transducer is built using Measurement Specialties’ proprietary UltraStable™ process and the latest CMOS sensor conditioning circuitry to create a low cost, high performance.

MS4525 Features

* PSI Pressure Ranges

* PCB Mountable

* High Level Analog Output

* Barbed Pressure Ports APPLICATIONS

* Blocked Filter Detection

* Altitude and Airspeed Measurements

* Medical Instruments

* Fire Suppression System

* Panel Meter

* Air Movement/Environmental Co

MS4525 Datasheet (404.78 KB)

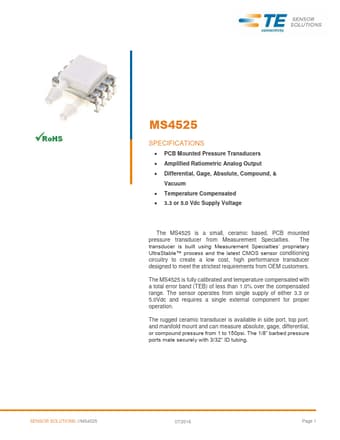

MS4525 Datasheet Preview — Preview of MS4525 PDF

Datasheet Details

Part number:

MS4525

Manufacturer:

File Size:

404.78 KB

Description:

Pressure transducer.
