V23105A5478A201, V23105 Datasheet - TE

V23105A5478A201 Signal Relays

Signal Signal Relays D2n Relay V23105 AXICOM n Standard DIL relay n Dimensions 20x10x11mm (.795x.394x.433”) n Switching and continous current 3A n 2 form C contacts (2 CO, 2 changeover contacts) n Immersion cleanable n Four different coil sensitivities, 150mW, 200mW, 400mW, >500mW n Surge voltage resistance meets FCC Part 68 requirement: 1.5kV (10/700μs) between coil and contacts Typical applications Communications equipment, office equipment, measurement and control equipment, entertainm.

V23105-TE.pdf

This datasheet PDF includes multiple part numbers: V23105A5478A201, V23105. Please refer to the document for exact specifications by model.

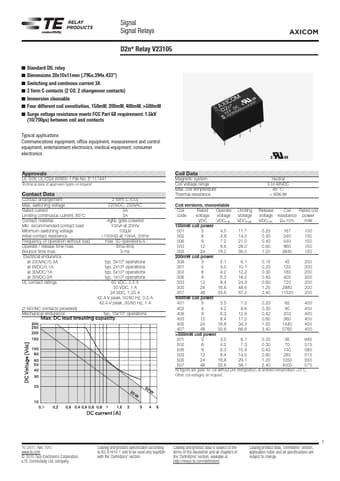

V23105A5478A201 Datasheet Preview Page 2 V23105A5478A201 Datasheet Preview Page 3

Datasheet Details

Part number:

V23105A5478A201, V23105

Manufacturer:

TE

File Size:

609.40 KB

Description:

Signal relays.

Note:

This datasheet PDF includes multiple part numbers: V23105A5478A201, V23105.
Please refer to the document for exact specifications by model.
