Automotive Relays Plug-in Maxi ISO Relays

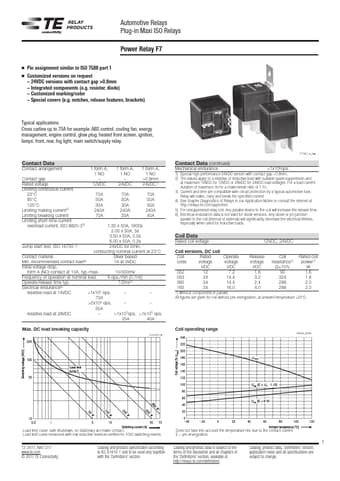

Power Relay F7
■ Pin assignment similar to ISO 7588 part 1 ■ Customized versions on request
– 24VDC versions with contact gap >0.8mm – Integrated components (e.g. resistor, diode) – Customized marking/color – Special covers (e.g. notches, release features, brackets)
Typical applications Cross carline up to 70A for example: ABS control, cooling fan, energy management, engine control, glow plug, heated front screen, ignition, lamps: front, rear, fog light, main switch/supply relay.
Contact Data
Contact arrangement
1 form A, 1 form A, 1 form A,
1 NO
1 NO
1 NO
Contact gap
– – >0.
