TD2002 ADSL Transformer

ADSL Transformer TD2002 Texas Instruments Chip EP 13 transformer Per UL1950, EN60950 and IEC950 OCL 6 Turn Ratio Line 10 kHz 100mV 75 µH (1-4):(10-7) 10 kHz 100mV 2:1 DCR (Max.) (1-4) 0.5 DCR (Max.) (10-7) 0.3 Hi-Pot Leakege Inductance (Max.) (1-4) to (10-7)) 1500 Vac 500 µA 1 minute (1-4) to (10-7)) µH 5 Total Harmonic Distortion (Min.) dB 100 kHz, 5Vp-p - 80 1 10 0.530 (13.45) 4 7 Max. Packaging: Add -T for Tape and Reel, TD2002-T Dimensions are in inches/(mm) = 0.010(0.25) TESLA .

TD2002 Datasheet (343.06 KB)

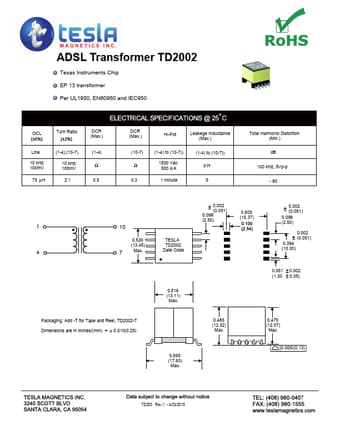

TD2002 Datasheet Preview — Preview of TD2002 PDF

Datasheet Details

Part number:

TD2002

Manufacturer:

TELSA

File Size:

343.06 KB

Description:

Adsl transformer.
