TT2243, TT2232 - (TT2232 - TT2246) Control Transformer

Name: TT2243
SKU: TT2243-751745

TEMCo

The TT2243 by TEMCo is a (TT2232 - TT2246) Control Transformer. Below is the official datasheet preview.

Datasheet Details

Part number	TT2243, TT2232
Manufacturer	TEMCo
File Size	15.10 MB
Description	(TT2232 - TT2246) Control Transformer
Datasheet	TT2232_TEMCo.pdf
Note	This datasheet PDF includes multiple part numbers: TT2243, TT2232. Please refer to the document for exact specifications by model.

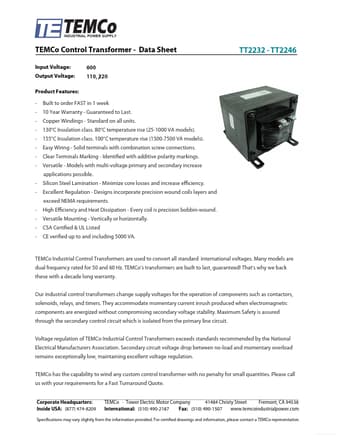

Additional preview pages of the TT2243 datasheet.

Built to order FAST in 1 week 10 Year Warranty - Guaranteed to Last. Copper Windings - Standard on all units. 130°C Insulation class. 80°C temperature rise (25-1000 VA models). 155°C Insulation class. 100°C temperature rise (1500-7500 VA models). Easy Wiring - Solid terminals with combination screw connections. Clear Terminals Marking - Identi ed with additive polarity markings. Versatile - Models with multi-voltage primary and secondary increase.
