TDA4445A Datasheet, Demodulator, TEMIC Semiconductors

TDA4445A Features

  • Demodulator D D D D D D Very high input sensitivity Excellent signal to noise ratio Fast averaged AGC IF amplifier can be switched off for VTR mode Output signal stabilized against VS variations Ve

PDF File Details

Part number:

TDA4445A

Manufacturer:

TEMIC Semiconductors

File Size:

117.09kb

Download:

📄 Datasheet

Description:

Quasi parallel sound processing with quadrature intercarrier demodulator. Pin 1  –16 3 8  –9 11 12 13 2, 4, 7, 10, 14, 15 Symbol Function IF input If AGC time constant Tuned circu

Datasheet Preview: TDA4445A 📥 Download PDF (117.09kb)

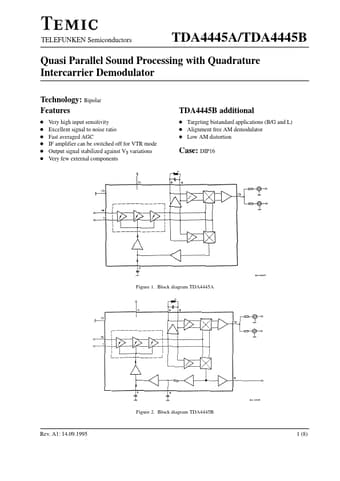

Page 2 of TDA4445A Page 3 of TDA4445A

TDA4445A Application

  • Applications (B/G and L) D Alignment free AM demodulator D Low AM distortion Case: DIP16 Figure 1. Block diagram TDA4445A Figure 2. Block diagram
