TSSP4400 - GaAs/GaAlAs Infrared Emitting Diode

Datasheet Summary

Description

TSSP4400 is a high intensity infrared emitting diode in GaAlAs on GaAs technology, molded in a clear, blue

grey tinted plastic package with spherical side view lens.

The device is spectrally matched to silicon photodiodes and phototransistors.

Features

D High radiant power and high radiant intensity D Suitable for high pulse current operation D Low forward voltage D Angle of half intensity ϕ = ± 22° D Peak wavelength l p = 925 nm D High reliability 94 8491.

TEMIC Semiconductors

📥 Download Datasheet

Datasheet Details

Part number	TSSP4400
Manufacturer	TEMIC Semiconductors
File Size	104.98 KB
Description	GaAs/GaAlAs Infrared Emitting Diode
Datasheet	TSSP4400 Datasheet
Additional preview pages of the TSSP4400 datasheet.

📁 Similar Datasheet

TSSP4038 - IR Sensor Module (Vishay)
TSSP4056 - IR Sensor Module (Vishay)
TSSP4P38 - IR Mid Range Proximity Sensors (Vishay)
TSSP53038 - IR Sensor (Vishay)
TSSP53038DF1P - IR Sensor (Vishay)
TSSP53056 - IR Sensor (Vishay)
TSSP53056DF1P - IR Sensor (Vishay)
TSSP57038 - IR Receiver (Vishay)
TSSP57056 - IR Receiver (Vishay)
TSSP57P38 - IR Detector (Vishay)

Other Datasheets by TEMIC Semiconductors

TSS461 - Van Controller Serial Interface
TSS461C - Van Controller Serial Interface
TSS461CVAN - Van Controller Serial Interface
TSS463 - Van Controller Serial Interface
TSS463VAN - Van Controller Serial Interface

Full PDF Text Transcription

Click to expand full text

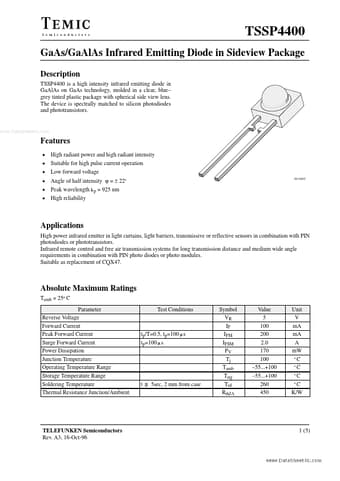

TSSP4400 GaAs/GaAlAs Infrared Emitting Diode in Sideview Package Description TSSP4400 is a high intensity infrared emitting diode in GaAlAs on GaAs technology, molded in a clear, blue– grey tinted plastic package with spherical side view lens. The device is spectrally matched to silicon photodiodes and phototransistors. www.DataSheet4U.com Features D High radiant power and high radiant intensity D Suitable for high pulse current operation D Low forward voltage D Angle of half intensity ϕ = ± 22° D Peak wavelength l p = 925 nm D High reliability 94 8491 Applications High power infrared emitter in light curtains, light barriers, transmissive or reflective sensors in combination with PIN photodiodes or phototransistors.
