U4050B - Speech Circuit

U4050B Description

U4050B Speech Circuit with Line-Powered Loudspeaker Amplifier .
The electronic speech circuit U4050B is a linear integrated circuit for use in telephone sets.

U4050B Features

* www. DataSheet4U. com D Integrated amplifier for loudhearing operation D Anticlipping for loudspeaker amplifier D Supply voltages for all functional blocks of a subscriber set D Adjustable DC characteristics D Adjustable sending and receiving amplification D Automatic line loss compensation D Symmetr

📥 Download Datasheet

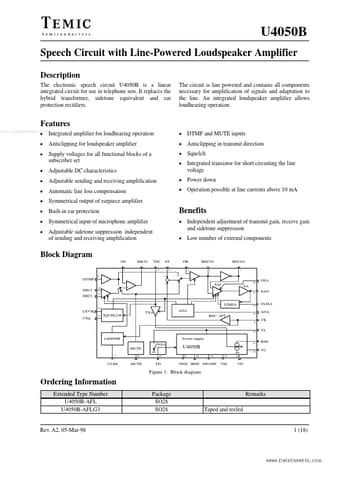

Preview of U4050B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
U4050B
Manufacturer
TEMIC Semiconductors
File Size
272.50 KB
Datasheet
U4050B_TEMICSemiconductors.pdf
Description
Speech Circuit
