U6046B - Rear Window Heating Timer

Description

The window heating timers are bipolar integrated circuits.

Due to time controlled functions, they reduce the current consumptions of high loads i.e., heating resistors.

An ON-relay can be switched off after a preset delay time.

Features

  • D D D D D Delay time range: 3.7 s to 20 h RC oscillator determines switching characteristics Relay driver with Z-diode Debounced input for toggle switch Two debounced inputs: ON and OFF D D D D D Load-dump protection RF interference protected Protection according to ISO/TR7637-1 (VDE 0839) U6046B: Inputs switched to VBatt U6047B: Inputs switched to ground Ordering Information Extended Type Number U6046B, U6047B U6046B.
  • FP, U6047B.

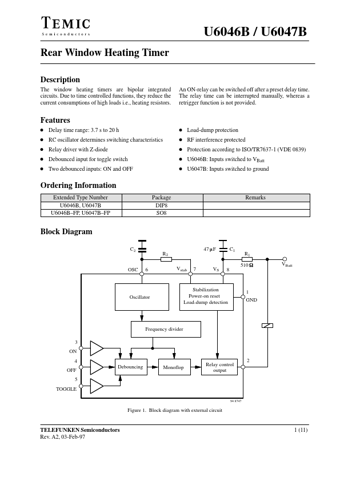

  • FP Package DIP8 SO8 Remarks Block Diagram C2 R2.
