U6206B Datasheet, Pll, TEMIC Semiconductors

U6206B Features

• Pll D 1.3 GHz divide-by-8 prescaler integrated (can be bypassed) D 15 bit counter accepts input frequencies up to 170 MHz D m P-controlled by I2C-Bus D 5 switching outputs (open collector )

PDF File Details

Part number:

U6206B

Manufacturer:

TEMIC Semiconductors

File Size:

127.52kb

Download:

📄 Datasheet

Description:

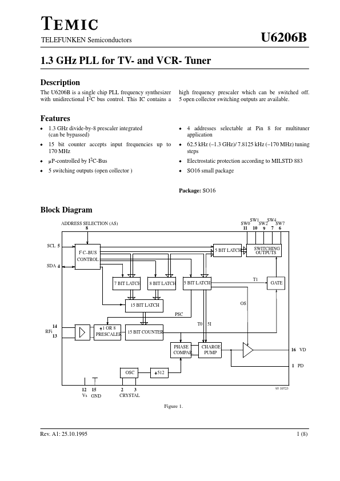

1.3 ghz pll. The U6206B is a single chip PLL frequency synthesizer with unidirectional I2C bus control. This IC contains a high frequency prescale

TAGS

U6206B

TEMIC Semiconductors
