TSC87C52

CMOS 0 to 33 MHz Programmable 8-Bit Microcontroller

TSC87C52 Features

* of the 80C52 with some enhancement: 8 K bytes of internal code memory (EPROM); 256 bytes of internal data memory (RAM); 32 I/O lines; three 16 bit timers one with count

* down and clock

* out capability; a 6-source, 2-level interrupt structure; a full duplex serial port with framing erro

TSC87C52 General Description

TEMIC’s TSC87C52 is high performance CMOS EPROM version of the 80C52 CMOS single chip 8 bit microcontroller. The fully static design of the TSC87C52 allows to reduce system power consumption by bringing the clock frequency down to any value, even DC, without loss of data. The TSC87C52 retains all th.

TSC87C52 Datasheet (293.21 KB)

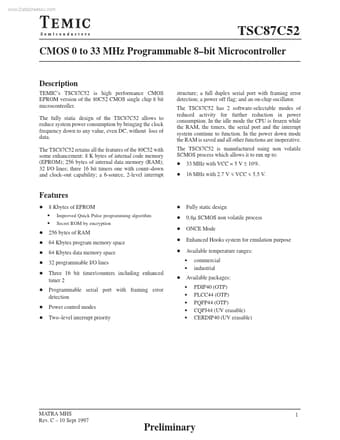

Preview of TSC87C52 PDF

Datasheet Details

Part number:

TSC87C52

Manufacturer:

TEMIC

File Size:

293.21 KB

Description:

Cmos 0 to 33 mhz programmable 8-bit microcontroller.
