U217B-FP

Zero Voltage Switch / Temperature Control

U217B-FP Features

* D Direct supply from the mains D Current consumption ≤ 0.5 mA D Very few external components D Full wave drive

* no d.c. current component in the load circuit D Negative output current pulse typ. 100 mA

* short circuit protected D Simple power control D Ramp generator D Reference vo

U217B-FP General Description

Integrated circuit, U 217 B, is a triac controller for zero crossing mode. It is meant to control power in switching resistive loads of mains supply. Informations regarding supply sync. is provided at Pin 8 via resistor RSync. To avoid d.c. load on the mains, full wave logic guarantee that complete .

U217B-FP Datasheet (325.87 KB)

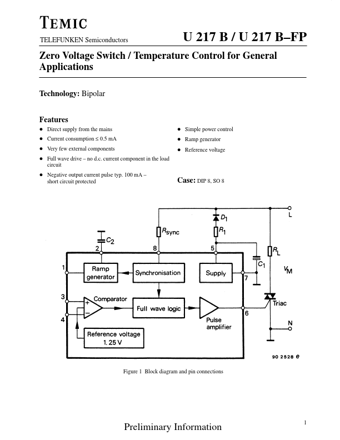

Preview of U217B-FP PDF

Datasheet Details

Part number:

U217B-FP

Manufacturer:

TEMIC

File Size:

325.87 KB

Description:

Zero voltage switch / temperature control.
TELEFUNKEN Semiconductors U 217 B / U 217 B

*FP Zero Voltage Switch / Temperature Control for General Applications Technology: Bipolar Feat.
