DG541 Datasheet, Switches, TEMICs

DG541 Features

  • Switches D D D D D D D Wide Bandwidth: 500 MHz Low Crosstalk:
      –85 dB High Off-Isolation:
      –80 dB @ 5 MHz “T” Switch Configuration TTL Logic Compatible Fast Switchi

PDF File Details

Part number:

DG541

Manufacturer:

TEMICs

File Size:

154.58kb

Download:

📄 Datasheet

Description:

Wideband/video t switches. The DG540/541/542 are high performance monolithic wideband/video switches designed for switching RF, video and digital signals. By ut

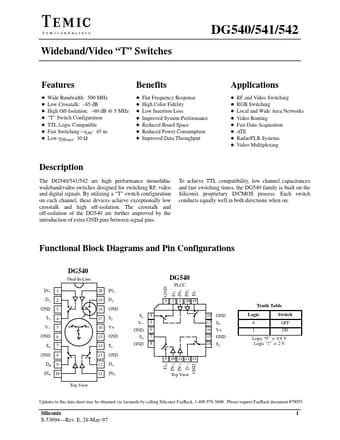

Datasheet Preview: DG541 📥 Download PDF (154.58kb)
Page 2 of DG541 Page 3 of DG541

DG541 Application

  • Applications D D D D D D D D RF and Video Switching RGB Switching Local and Wide Area Networks Video Routing Fast Data Acquisition ATE Radar/FLR Sys
