TD6002 - VDSL Transformer

📥 Download Datasheet

Datasheet preview – TD6002

Datasheet Details

Part number TD6002
Manufacturer TESLA MAGNETICS
File Size 211.05 KB
Description VDSL Transformer
Datasheet download datasheet TD6002 Datasheet
Additional preview pages of the TD6002 datasheet.

📁 Similar Datasheet

  • TD6102P - ECL Prescaller (Toshiba)
  • TD6104P - ECL Prescaller (Toshiba)
  • TD6109P - ECL Prescaller (Toshiba)
  • TD6116P - 1.2GHz PRESCALER (Toshiba)
  • TD6118P - 1.2GHz PRESCALER (Toshiba)
  • TD6120P - 1.2GHz PRESCALER (Toshiba)
  • TD6122P - 1.2GHz PRESCALER (Toshiba)
  • TD6124P - 1.2GHz PRESCALER (Toshiba)
  • TD6126P - 1.2GHz PRESCALER (Toshiba)
  • TD6127BP - ECL PRESCALLER FOR COMMUNICATIONS RADIO (Toshiba)
Other Datasheets by TESLA MAGNETICS

    Full PDF Text Transcription

    Click to expand full text

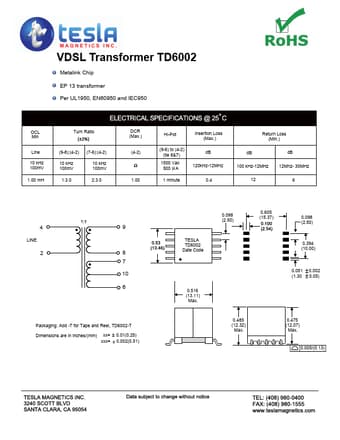

    VDSL Transformer TD6002 Metalink Chip EP 13 transformer Per UL1950, EN60950 and IEC950 OCL Min Line 10 kHz 100mV 1.00 mH Turn Ratio (9-8):(4-2) (7-6):(4-2) 10 kHz 100mV 10 kHz 100mV 1:3.0 2:3.0 DCR (Max.) (4-2) 1.00 Hi-Pot Insertion Loss (Max.) (9-6) to (4-2) (tie 8&7) 1500 Vac 500 µA dB 120kHz-12MHz 1 minute 0.4 Return Loss (Min.) dB dB 100 kHz-12MHz 12Mhz- 30MHz 12 6 4 9 LINE 2 8 7 10 6 Packaging: Add -T for Tape and Reel, TD6002-T Dimensions are in inches/(mm) xx= 0.01(0.25) xxx= 0.002(0.51) TESLA TD6002 Date Code 0.516 (13.11) Max. 0.098 (2.50) 0.605 (15.37) 0.098 (2.50) 0.394 (10.00) 0.051 0.002 (1.30 0.05) 0.485 (12.32) Max. 0.475 (12.07) Max. 0.005/(0.
