CS2003CP Datasheet - TGS

CS2003CP Seven Darlington Arrays

2.1 Functional block diagram 16 15 14 13 12 11 10 9 12 34 56 7 2. 2. Pin Description Pin Symbols 1 IN1 2 IN2 3 IN3 4 IN4 5 IN5 6 IN6 7 IN7 8 GND Function pin symbol Input 1 9 WITH Input 2 10 OUT7 Input 3 11 OUT6 Input 4 12 OUT5 Input 5 13 OUT4 Input 6 14 OUT3 Input .
TIGER Machine Translated by Google ELECTRONIC CO.,LTD Bipolar Circuit CS2003CP Seven-channel Darlington tube driver circuit 1. Overview CS2003CP is a high voltage, high current Darlington transistor array driver circuit, which contains seven groups of NPN Darlington transistors. The emitters of each group of Darlington tubes are connected together, and the collectors are open circuit output. Mainly used to drive relays, electric bell hammers, Lighting equipment and LED display systems. Its f.

CS2003CP Features

* are as follows:

* The maximum current sink of a single channel can reach 500mA

* Continuous output high voltage can reach minimum 50V

* Under 5V working condition, the output terminal can be directly connected to TTL and CMOS

* Integrated clamping diode at output

CS2003CP Datasheet (695.11 KB)

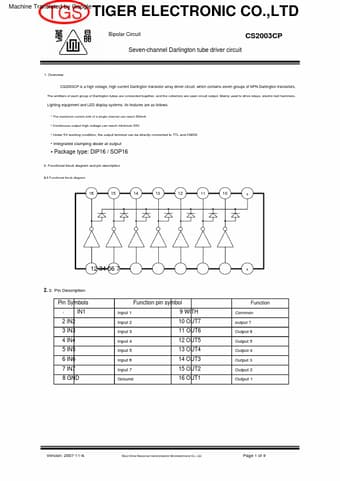

Preview of CS2003CP PDF

Datasheet Details

Part number:

CS2003CP

Manufacturer:

TGS

File Size:

695.11 KB

Description:

Seven darlington arrays.
