STR-4A60S, STR4A60S - Sensitive Gate Triacs

STR-4A60S Description

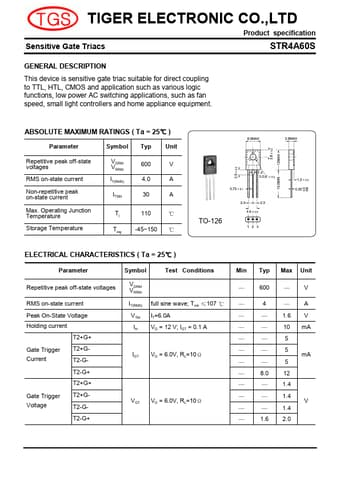

TIGER ELECTRONIC CO.,LTD Product specification Sensitive Gate Triacs STR4A60S GENERAL .
This device is sensitive gate triac suitable for direct coupling to TTL, HTL, CMOS and application such as various logic functions, low power AC switc.

STR-4A60S Applications

* such as fan speed, small light controllers and home appliance equipment. ABSOLUTE MAXIMUM RATINGS ( Ta = 25℃ ) Parameter Symbol Typ Unit Repetitive peak off-state voltages RMS on-state current Non-repetitive peak on-state current Max. Operating Junction Temperature Storage Temperature VVDRRRMM

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STR-4A60S, STR4A60S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
STR-4A60S, STR4A60S
Manufacturer
TGS
File Size
135.67 KB
Datasheet
STR4A60S-TGS.pdf
Description
Sensitive Gate Triacs
Note
This datasheet PDF includes multiple part numbers: STR-4A60S, STR4A60S.
Please refer to the document for exact specifications by model.
