HJQ-15F-1 Relay

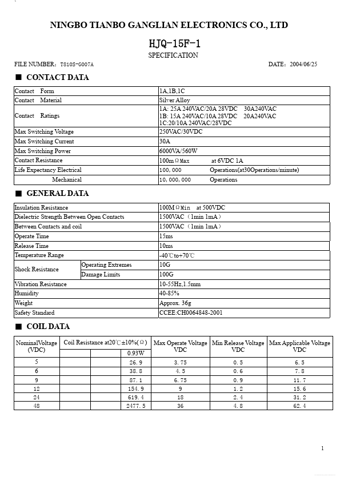

` NINGBO TIANBO GANGLIAN ELECTRONICS CO., LTD HJQ-15F-1 SPECIFICATION FILE NUMBER：T810S-G007A DATE：2004/06/25 CONTACT DATA Contact Contact Contact Form Material Ratings 1A,1B,1C Silver Alloy 1A: 25A 240VAC/20A 28VDC 30A240VAC 1B: 15A 240VAC/10A 28VDC 20A240VAC 1C:20/10A 240VAC/28VDC 250VAC/30VDC 30A 6000VA/560W 100mΩMax 100,000 10,000,000 at 6VDC 1A Operations(at30Operations/minute) Operations Max Switching Voltage Max Switching Current Max Switching Power Contact Resistance Life Expec.
