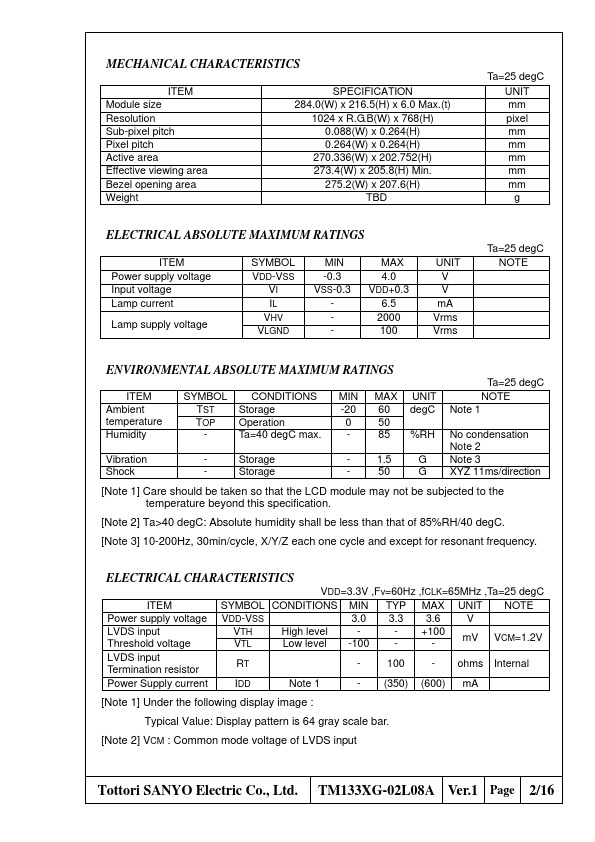

TM133XG-02L08A Ver.1 Page 1/16 MECHANICAL CHARACTERISTICS ITEM Module size Resolution Sub-pixel pitch Pixel pitch Active area Effective viewing area Bezel opening area Weight SPECIFICATION 284.0(W) x 216.5(H) x 6.0 Max.(t) 1024 x R.G.B(W) x 768(H) 0.088(W) x 0.2

ENGINEERING SPECIFICATIONS TFT COLOR LCD MODULE TM133XG-02L08A - 34cm (13.3 inch) diagonal - XGA resolution (1024 x 768 pixels) - SPWG #2 Style A - LVDS (6 bits x RGB) - Side mount - Slim (t 6.0mm Max) - With CFL backlight unit (TENTATIVE) Ver.

1 Mar.

12, 2001 Tottori SANYO Electric Co., Ltd.

Electric Device Business Headquarters LCD Division 3-201, Minami-yoshikata, Tottori, 680-8634 Japan TEL: 81-857-21-2941, 1958 FAX: 81-857-21-2162 Department Manager S.

IWASAKI Engineering Manager K.
