TVR10621 High Surge Zinc Oxide Varistor

THINKING THINKING THINKING THINKING HIGH SURGE ZINC OXIDE VARISTOR 10Ø D-SERIES Ł DIMENSION Unit:mm Disc Ø 10 Dimensions Dmax. 14.0 Lmin. 30 dnor. 0.8±0.02 Pnor. 7.5±1 Ł SPECIFICATION Normal Varistor Voltage @1mADC Max. Allowable Voltage AC rms (V) 130 140 150 175 195 215 230 250 275 300 320 350 395 420 465 510 550 625 680 DC (V) 170 180 200 225 250 275 300 320 350 385 410 450 510 560 615 670 745 825 895 Max. Clamping Voltage @25A (8/20µs) (V) 340 360 395 455 500 550 595 650 710 775 845 930.

TVR10621 Datasheet (35.95 KB)

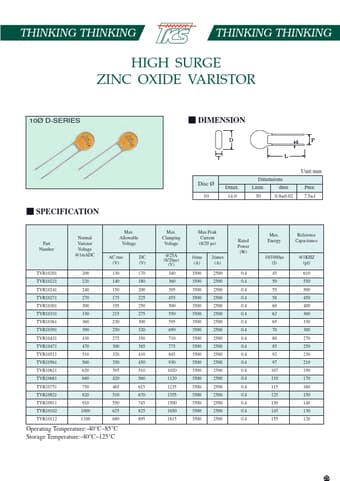

TVR10621 Datasheet Preview — Preview of TVR10621 PDF

Datasheet Details

Part number:

TVR10621

Manufacturer:

TKS

File Size:

35.95 KB

Description:

High surge zinc oxide varistor.
