TVR14431-D - Metal Oxide Varistor

Product Overview

TKS

Part number	TVR14431-D
Manufacturer	TKS
File Size	476.81 KB
Description	Metal Oxide Varistor
Datasheet	TVR14431-D Datasheet
Note	This datasheet PDF includes multiple part numbers: TVR14431-D, TVR07181-D. Please refer to the document for exact specifications by model.

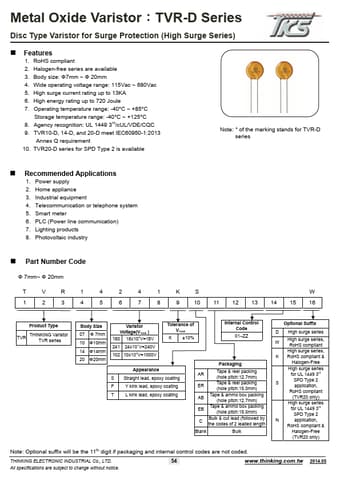

Additional preview pages of the TVR14431-D datasheet.

RoHS compliant Halogen-free series are available Body size: Ф7mm ~ Ф 20mm Wide operating voltage range: 115Vac ~ 680Vac High surge current rating up to 13KA High energy rating up to 720 Joule Operating temperature range: -40°C ~ +85°C Storage temperature range: -40°C ~ +125°C 8. Agency recognition: UL 1449 3rd/cUL/VDE/CQC 9. TVR10-D, 14-D, and 20-D meet IEC60950-1:2013 Annex Q requirement 10. TVR20-D series for SPD Type 2 is available 1. 2. 3. 4. 5. 6. 7. Note:.
of the marking stands for T.
