1.5SMBJ120CA - Transient Voltage Suppressors

Product Overview

Datasheet Details

Part number	1.5SMBJ120CA
Manufacturer	TLC Electronic
File Size	208.68 KB
Description	Transient Voltage Suppressors
Datasheet	1.5SMBJ120CA Datasheet
Note	This datasheet PDF includes multiple part numbers: 1.5SMBJ120CA, 1.5SMBJ5.0A. Please refer to the document for exact specifications by model.

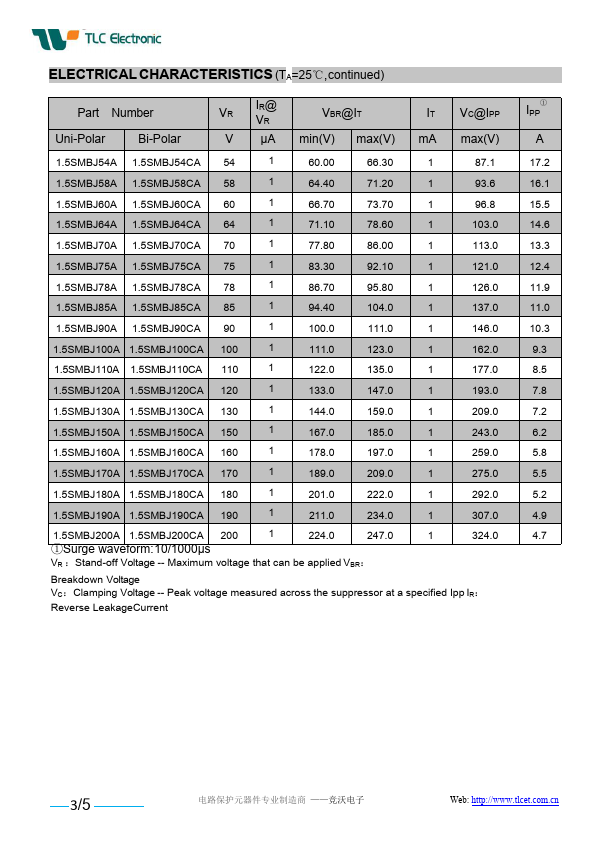

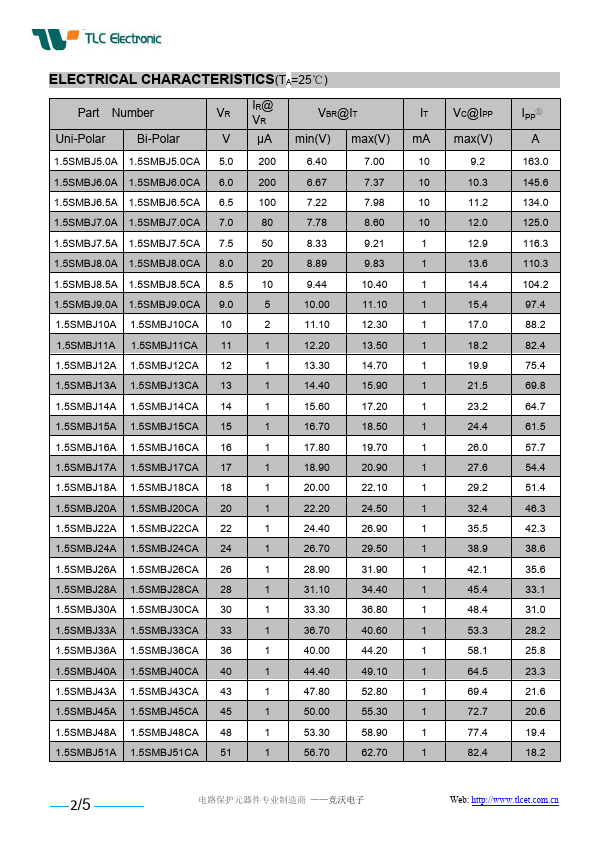

Additional preview pages of the 1.5SMBJ120CA datasheet.

Product details

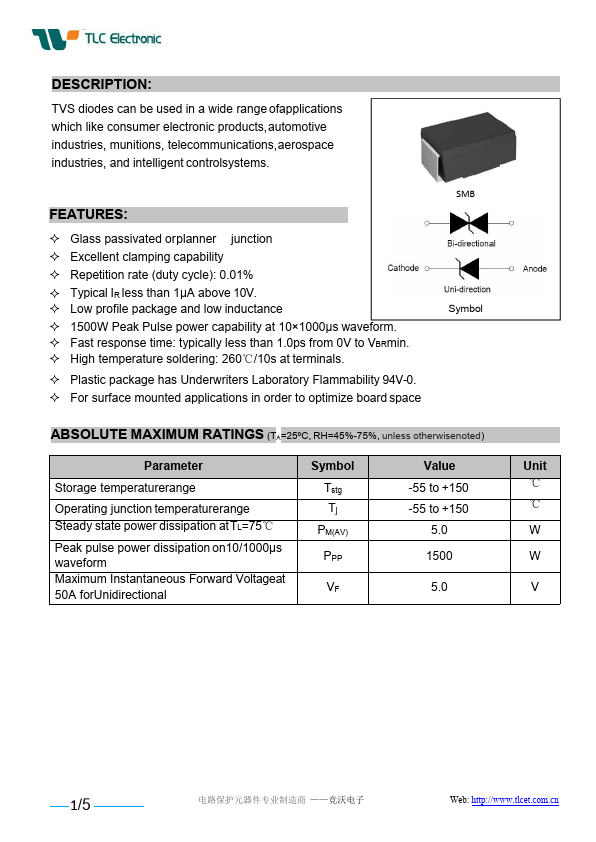

Description

TVS diodes can be used in a wide range ofapplications which like consumer electronic products,automotive industries, munitions, telecommunications,aerospace industries, and intelligent controlsystems.

Features

Glass passivated orplanner junction.
Excellent clamping capability.
Repetition rate (duty cycle): 0.01%.
Typical IR less than 1μA above 10V.
Low profile package and low inductance.
1500W Peak Pulse power capability at 10×1000μs waveform.
Fast response time: typically less than 1.0ps from 0V to VBRmin.
High temperature soldering: 260℃/10s at terminals.
Plastic package has Underwriters Laboratory Flammability 94V-0.
For surface mounted appli.
