TABF40 Square Surface Mount Fuses

Square Surface Mount Fuses TABFXXX series fast-acting square Surface Mount Fuses are ceramic tube/end cap constructions, RoHS compliant, Halogen Free and lead (Pb) exempts of the requirements of RoHS Directive(2002/95/EC), with U.S. (UL) safety agency approvals. Agency Approvals Agency Ampere Range.

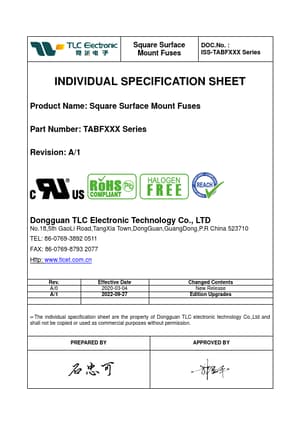

Square Surface Mount Fuses DOC.No. : ISS-TABFXXX Series INDIVIDUAL SPECIFICATION SHEET Product Name: Square Surface Mount Fuses Part Number: TABFXXX Series Revision: A/1 Dongguan TLC Electronic Technology Co., LTD No.18,5th GaoLi Road,TangXia Town,DongGuan,GuangDong,P.R China 523710 TEL: 86-0769-3892 0511 FAX: 86-0769-8793 2077 Http: www.tlcet.com.cn Rev. A/0 A/1 Effective Date 2020-03-04 2022-09-27 Changed Contents New Release Edition Upgrades ☞The individual specification sheet are the .

TABF40 Features

* Fast-acting

* Small size 6.1mm x 2.7mm

* Operating temperature: -55℃~125℃

* One-time protective effect

* RoHS Compliant

* Follow UL248-14 0 Electrical Characteristics % of Ampere Rating 100% 200% Opening Time 4 hours Min. 60 sec Max. Electrical Specifications by Item P

TABF15-TLC.pdf

TABF40 Datasheet Preview — This datasheet PDF includes multiple part numbers: TABF40, TABF15. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TABF40, TABF15

Manufacturer:

TLC

File Size:

368.03 KB

Description:

Square surface mount fuses.

Note:

This datasheet PDF includes multiple part numbers: TABF40, TABF15.
Please refer to the document for exact specifications by model.
