QD48A01 1000 Base-T DUAL port through hole Magnetics

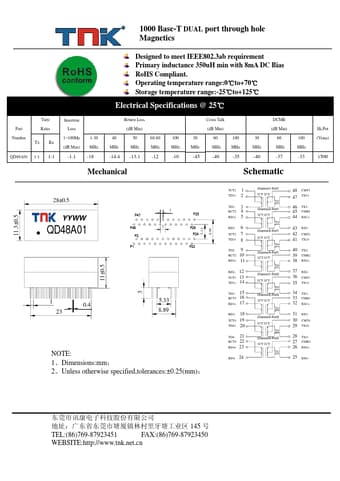

1000 Base-T DUAL port through hole Magnetics Designed to meet IEEE802.3ab requirement Primary inductance 350uH min with 8mA DC Bias RoHS Compliant. Operating temperature range:0℃to+70℃ Storage temperature range:-25℃to+125℃ Electrical Specifications @ 25℃ Part Number Turn Ratio Tx Rx QD48A01 1:1 1:1 Insertion Loss 1~100Mz 1-30 (dB Max) MHz -1.1 -18 Return Loss (dB Min) 40 50 60-80 MHz MHz MHz -14.4 -13.1 -12 100 MHz -10 Cross Talk (dB Min) 30 60 100 MHz MHz MHz -45 -40 -35 .

QD48A01 Datasheet (73.76 KB)

QD48A01 Datasheet Preview — Preview of QD48A01 PDF

Datasheet Details

Part number:

QD48A01

Manufacturer:

TNK

File Size:

73.76 KB

Description:

1000 base-t dual port through hole magnetics.
