QT48A03 1000 Base-T DUAL Port Transformer Module

1000Base-T DUAL Port Transformer Module Designed to meet IEEE802.3ab requirement Designed to meet IR 255℃ peak requirement Primary inductance 350uH min with 8mA DC Bias RoHS Compliant Operating temperature range:0℃to+70℃ Storage temperature range:-25℃to+125 Electrical Specifications @ 25℃ Part Number QT48A03 Turn Ratio Tx Rx 1:1 1:1 Insertion Loss 0.5~100Mz (dB Max) -1.0 Return Loss (dB Min) 0.5-30 30.1-60 60.1-80 MHz MHz MHz -16 -14 -12 Cross Talk (dB Min) 0.5-40 40.1-100 MHz .

QT48A03 Datasheet (102.71 KB)

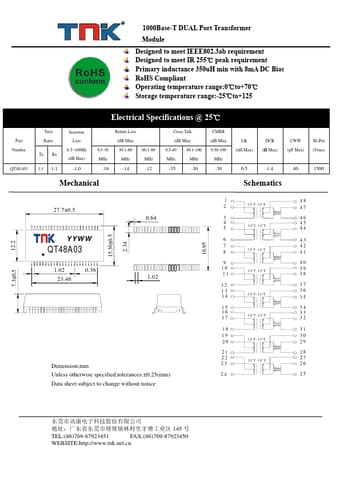

QT48A03 Datasheet Preview — Preview of QT48A03 PDF

Datasheet Details

Part number:

QT48A03

Manufacturer:

TNK

File Size:

102.71 KB

Description:

1000 base-t dual port transformer module.
