KV1310NT - VARIABLE CAPACITANCE DIODE

Datasheet Summary

Description

The KV1310NT variable capacitance diode was specially developed for use as tuning elements in car radios, radio cassettes, and other consumer radios.

The KV1310NT minimizes cross modulation; thus allowing good signal-to-noise ratio in the overall design.

Features

  • s Very Low Operating Voltage s Excellent Linearity (CV Curve) s Large Capacitance Ratio (A = 2.20 minimum) with Low Series Resistance s Two Diodes in a 3 Lead Through-Hole Discrete Package (TO92-3) s Very Small Capacitance Deviation at Tape/Reel.

📥 Download Datasheet

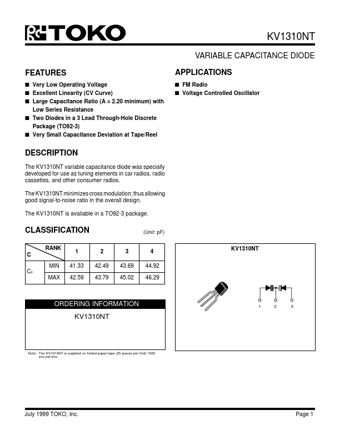

Datasheet preview – KV1310NT

Datasheet Details

Part number KV1310NT
Manufacturer TOKO Inc
File Size 45.71 KB
Description VARIABLE CAPACITANCE DIODE
Datasheet download datasheet KV1310NT Datasheet
Additional preview pages of the KV1310NT datasheet.
