DAC2450CT1T - DIELECTRIC ANTENNA

Product Overview

TOKO

📥 Download Datasheet

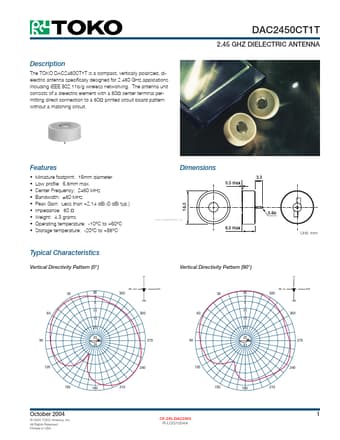

DAC2450CT1T DIELECTRIC ANTENNA by TOKO - Datasheet Preview — Datasheet preview – DAC2450CT1T

Datasheet Details

Part number	DAC2450CT1T
Manufacturer	TOKO
File Size	480.36 KB
Description	DIELECTRIC ANTENNA
Datasheet	DAC2450CT1T Datasheet
Additional preview pages of the DAC2450CT1T datasheet.

Product details

Description

The TOKO DAC2450CT1T is a compact, vertically polarized, dielectric antenna specifically designed for 2.450 GHz applications including IEEE 802.11b/g wireless networking.

Features

Miniature footprint: 16mm diameter Low profile: 6.5mm max. Center Frequency: 2450 MHz Bandwidth: ±50 MHz Peak Gain: Less than +2.14 dBi (0 dBi typ. ) Impedance: 50 Ω Weight: 4.3 grams Operating temperature: -10°C to +60°C Storage temperature: -20°C to +85°C Dimensions 3.3 0.5 max 16.0 0.8ø 6.5 max www. DataSheet4U. com Unit: mm Typical Characteristics Vertical Directivity Pattern (0°) 0° Vertical Direct.
