DAK1575MS50T Datasheet - TOKO

GPS DIELECTRIC PATCH ANTENNA

DAK1575MS50T Features

* Range of Receiving Freq.: 1575.42±1.023 MHz Center Freq.: 1580.5 MHz with 70mm2 GND plane1 Bandwidth: 9 MHz min. Miniature Footprint: 25mm x 25mm Low Profile: 4.5mm Gain (Zenith 90o): +5 dBi (typ.) Gain (10o Elevation): -1 dBi (typ.) Impedance: 50 Ω Freq. Temperature Coefficient: 20ppm/oC max. Opera

DAK1575MS50T General Description

The TOKO DAK1575MS50T is a low profile, dielectric antenna element specifically designed for 1575.42 MHz L1 GPS applications. The flat patch antenna incorporates a rectangular micro-strip design for GPS C/A right-hand circular polarization wave reception. The DAK1575MS50T has excellent stability and.

DAK1575MS50T Datasheet (428.01 KB)

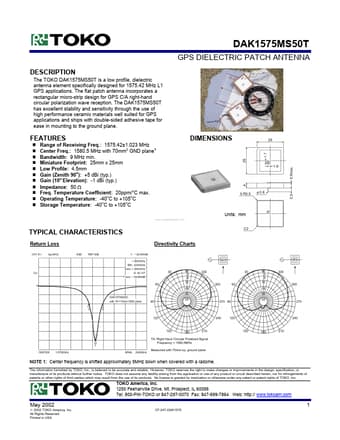

Preview of DAK1575MS50T PDF
