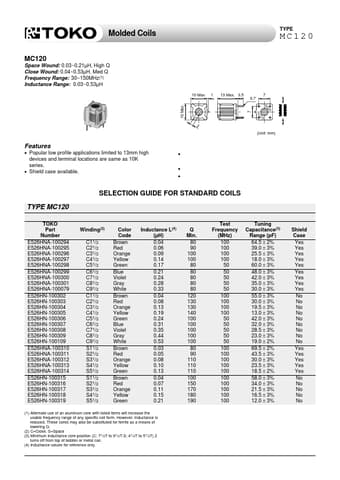

Molded Coils MC120 Space Wound: 0.03~0.21µH, High Q Close Wound: 0.04~0.53µH, Med Q Frequency Range: 30~150MHz(1) Inductance Range: 0.03~0.53µH TYPE MC120 10 Max. 1 13 Max. 3.5 7 0.7 10 Max. 7 Features • Popular low profile applications limited to 13mm high devices and terminal locations are same as 10K series. • Shield case available.
