Part number:
TTP223-BA6
Manufacturer:
TONTEK
File Size:
237.98 KB
Description:
1 key touch pad detector.

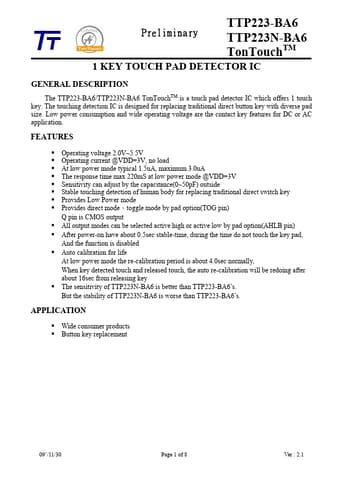

TTP223-BA6 Datasheet (237.98 KB)
* for DC or AC application. FEATURES
* Operating voltage 2.0V~5.5V
* Operating current @VDD=3V, no load
* At low power mode typical 1.5uA, maximum 3.0uA
* The response time max 220mS at low power mode @VDD=3V
* Sensitivity can adjust by the capacitance(0~50pF) outside
* Stable
TTP223-BA6 Datasheet (237.98 KB)
TTP223-BA6
TONTEK
237.98 KB
1 key touch pad detector.
