S5ABF Surface Mount General Purpose Silicon Rectifiers

Description

S5ABF THRU S5MBF Surface Mount General Purpose Silicon Rectifiers Reverse Voltage * 50 to 1000 V Forward Current * 5 A SMBF .

📥 Download Datasheet

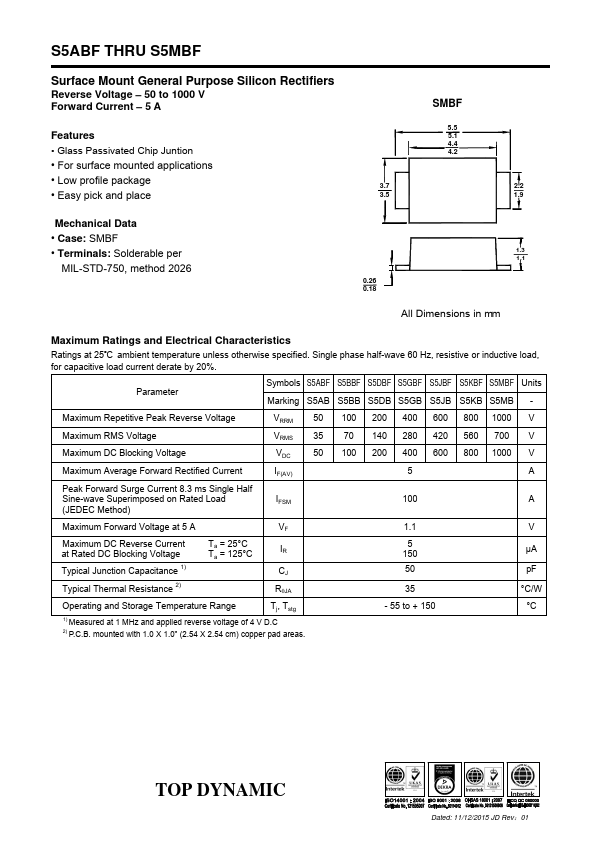

S5ABF Datasheet Preview — Preview of S5ABF PDF

Datasheet Specifications

Part number: S5ABF
Manufacturer: TOP DYNAMIC
File Size: 230.54 KB
Datasheet: S5ABF-TOPDYNAMIC.pdf
Description: Surface Mount General Purpose Silicon Rectifiers

Features

* Glass Passivated Chip Juntion

Applications

* Low profile package
* Easy pick and place 5.5 5.1 4.4 4.2 3.7 2.2 3.5 1.9 Mechanical Data
* Case: SMBF
* Terminals: Solderable per MIL-STD-750, method 2026 1.3 1.1 0.26 0.18 All Dimensions in mm Maximum Ratings and Electrical Characteristics Ratings at 25℃ a
