JT030N065FED, JT030N065WED N-CHANNEL IGBT

Description

Diode Web: www.topdiode.com Mail: info@topdiode.com Your Reliable Components Partner Skype: topdiode WhatsApp/WeChat: +86 13712073035 N-CHANNEL IGB.

📥 Download Datasheet

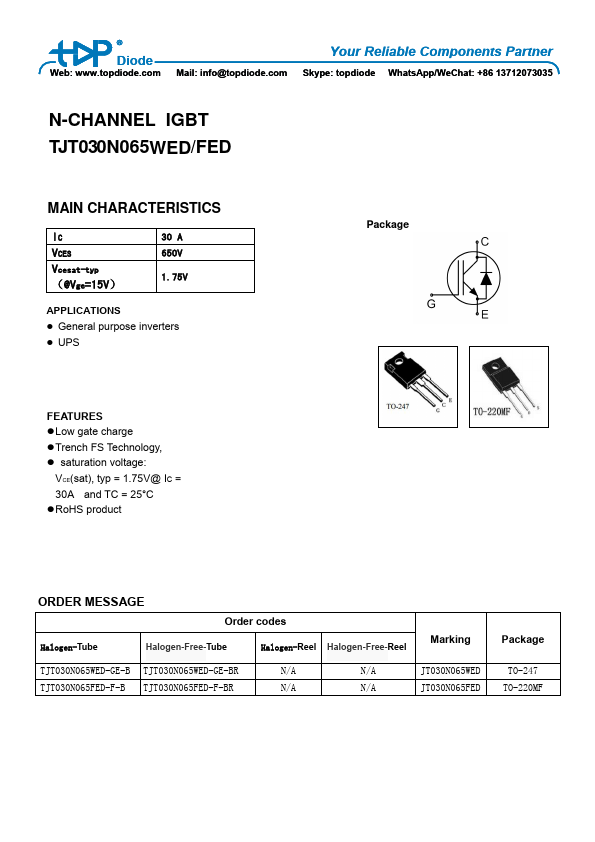

JT030N065FED Datasheet Preview — This datasheet PDF includes multiple part numbers: JT030N065FED, JT030N065WED. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: JT030N065FED, JT030N065WED
Manufacturer: TOP Diode
File Size: 1.09 MB
Datasheet: JT030N065WED-TOPDiode.pdf
Description: N-CHANNEL IGBT
Note: This datasheet PDF includes multiple part numbers: JT030N065FED, JT030N065WED.
Please refer to the document for exact specifications by model.

Features

* Low gate charge
* Trench FS Technology,
* saturation voltage: VCE(sat), typ = 1.75V@ IC = 30A and TC = 25°C
* RoHS product ORDER MESSAGE Order codes Halogen-Tube Halogen-Free-Tube Halogen-Reel Halogen-Free-Reel Marking TJT030N065WED-GE-B TJT030N065WED-GE-BR N/A TJT030N065FED-

Applications

* General purpose inverters
