Part number:
KYX-5461AS
Manufacturer:
TOPLIGHT
File Size:
285.19 KB
Description:
Four digit super red display.
* 0.56 inch digit height
* Super Red emitting color
* White segment color, black face
* Low current operation
* Easy mounting on PCB boards or sockets
* Lead free, RoHS compliant Applications
* Digital clocks
* Electronic meters

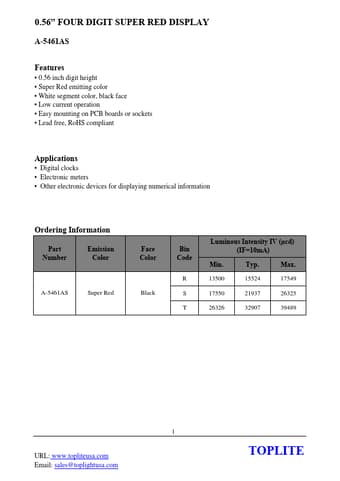

KYX-5461AS Datasheet (285.19 KB)
KYX-5461AS
TOPLIGHT
285.19 KB
Four digit super red display.
