TPB0505S

2W 3KVDC Isolation Regulated Single Output DC/DC Converters

TPB0505S Features

* SIP package 3KVDC isolation Operating temperature:-40℃ to 105℃ Regulated single output Continuous short circuit protection RoHS compliance、CE certification SELECTION GUIDE Input Output Part Number Voltage（VDC） Nominal Range Voltage（VDC) Current（mA) Max Min Efficiency（%） TPB0505S 5

TPB0505S Datasheet (612.17 KB)

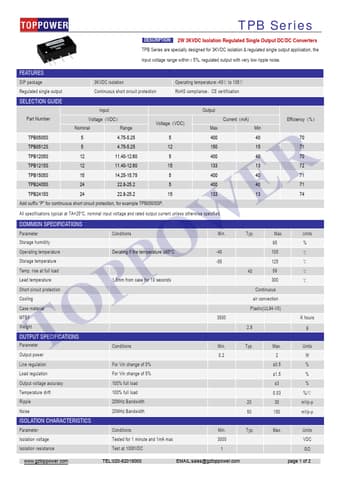

Preview of TPB0505S PDF

Datasheet Details

Part number:

TPB0505S

Manufacturer:

TOPPOWER

File Size:

612.17 KB

Description:

2w 3kvdc isolation regulated single output dc/dc converters.
