TPJ0512S-2W

The TPJ0512S-2W is 2W 6KVDC Isolated Single and Dual Output DC/DC Converters designed by TOPPOWER.

Product Overview

TOPPOWER

Datasheet Details

Part number	TPJ0512S-2W, TPJ0505S-2W
Manufacturer	TOPPOWER
File Size	577.95 KB
Description	2W 6KVDC Isolated Single and Dual Output DC/DC Converters
Datasheet	TPJ0505S-2W-TOPPOWER.pdf
Note	This datasheet PDF includes multiple part numbers: TPJ0512S-2W, TPJ0505S-2W. Please refer to the document for exact specifications by model.

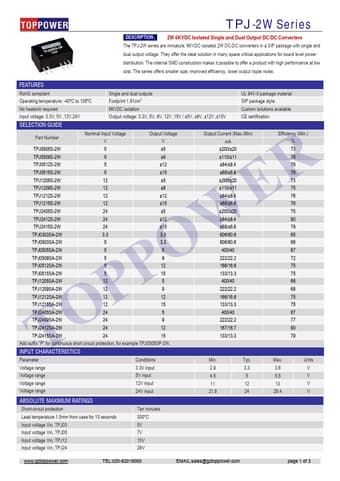

Additional preview pages of the TPJ0512S-2W datasheet.

Product details

Description

2W 6KVDC Isolated Single and Dual Output DC/DC Converters The TPJ-2W series are miniature, 6KVDC isolated 2W DC-DC converters in a SIP package with single and dual output voltage.

Features

RoHS compliant Operating temperature: -40ºC to 105ºC Single and dual outputs Footprint 1.91cm2 UL 94V-0 package material SIP package style No heatsink required 6KVDC isolation Custom solutions available Input voltage: 3.3V, 5V ,12V,24V.
